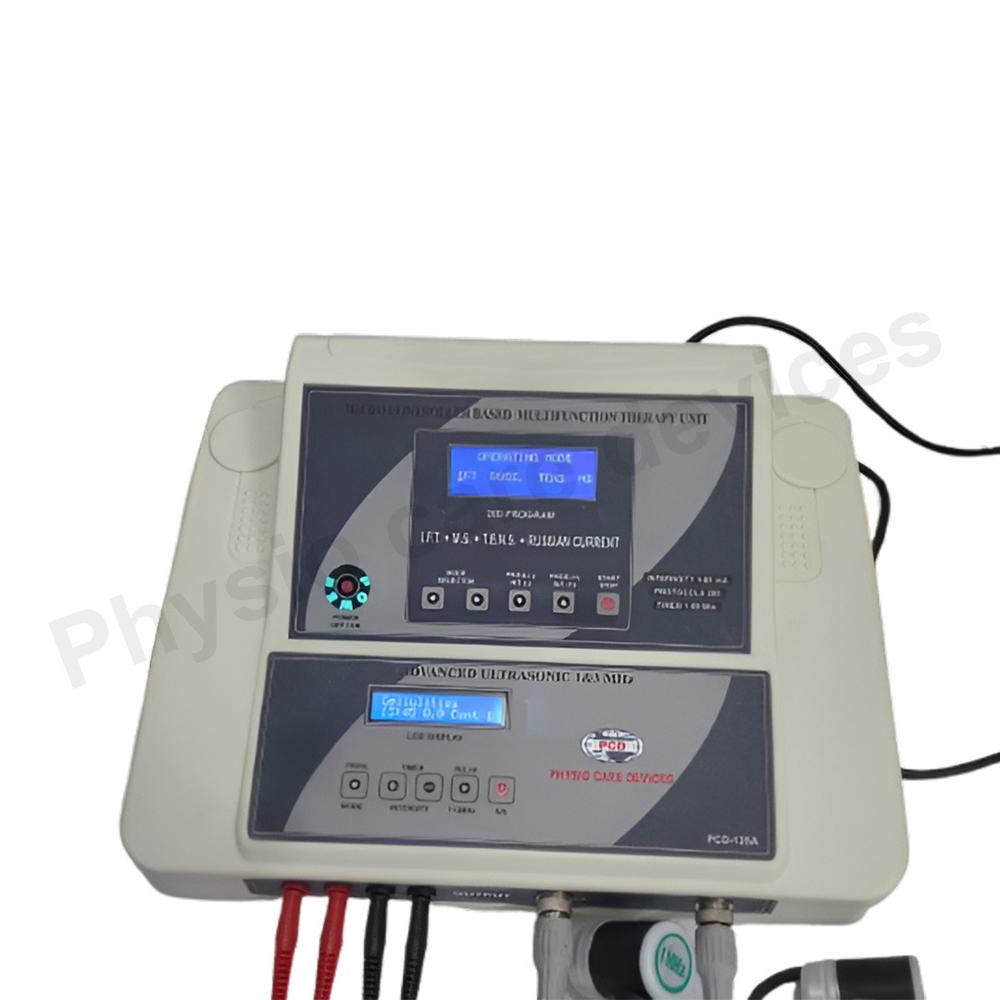

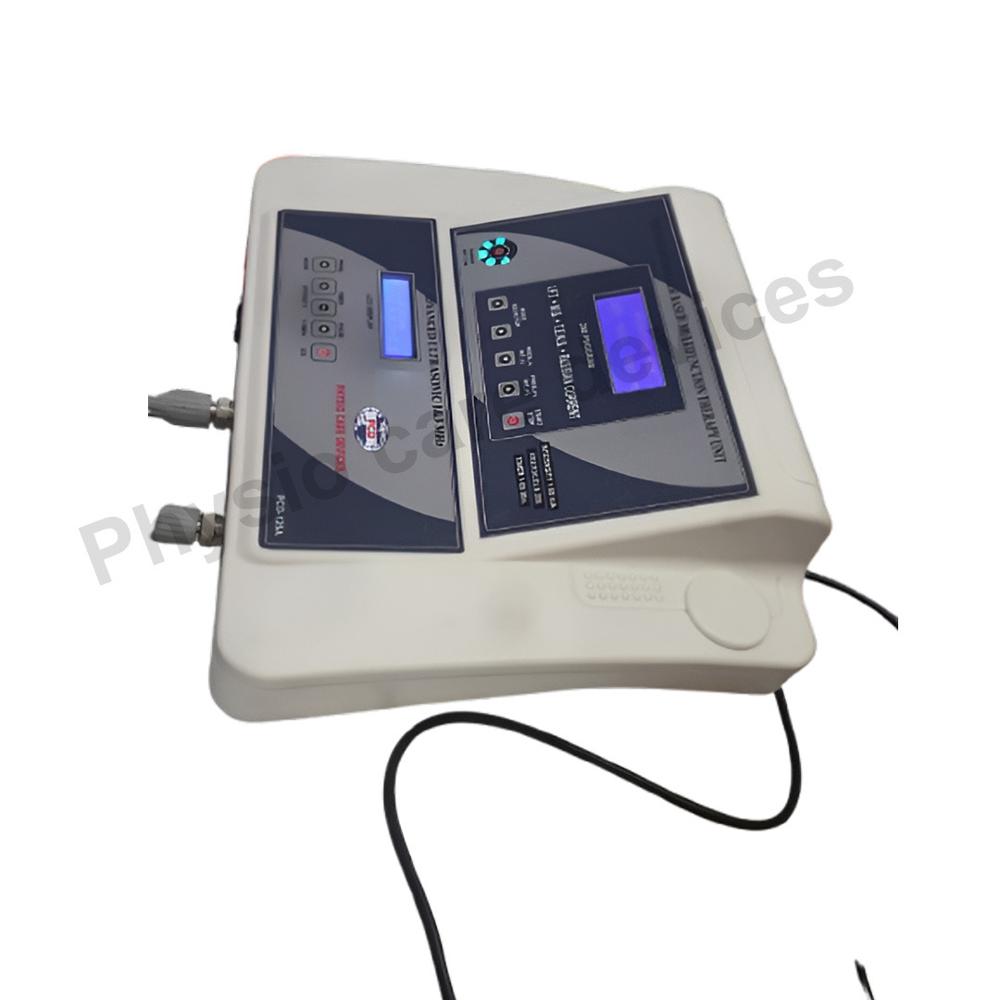

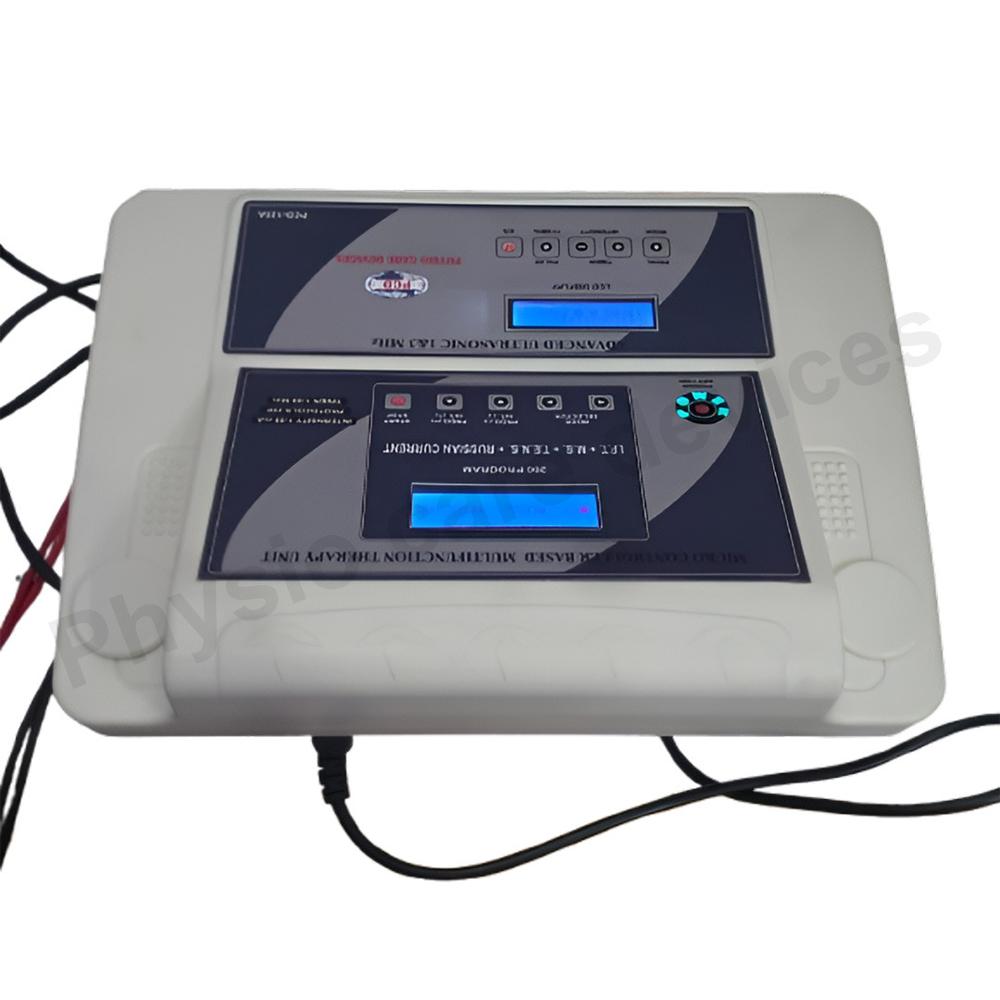

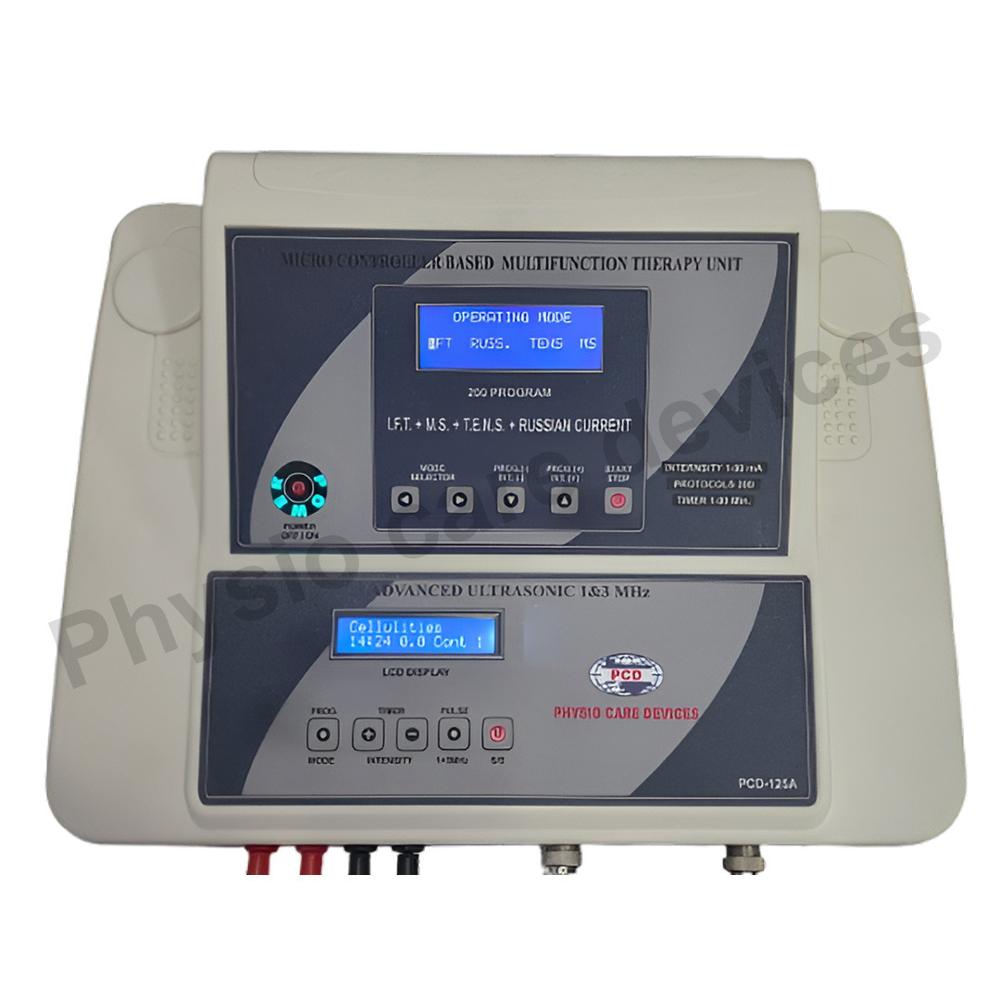

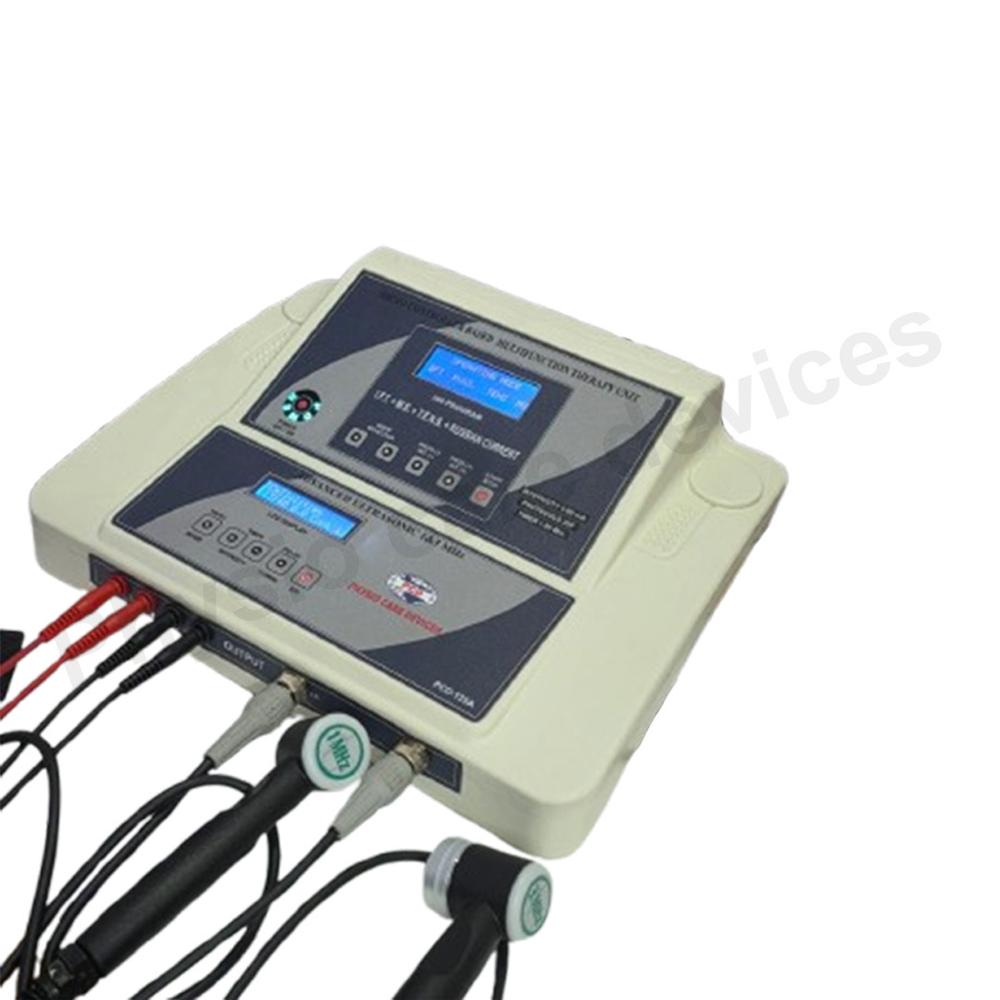

Microcontroller Based Multifunction Therapy Unit

Microcontroller Based Multifunction Therapy Unit About

Microcontroller Based Multifunction Therapy Unit

Combination four in one Electrotherapy + ultrasound Therapy Machine (Four in one IFT + TENS +MS + Ultrasound 1 & 3MHz ) light wait abs plastic body Model Pcd-125 A

IFT+ MS+TENS+ RUSSIAN CURRENT

ADVANCE ULTRASOUND 1&3 MHZ

IFT +Russian +TENS+ MS +ultrasound therapy 1&3 mhz features 200 pre-program with protocols & Manual operating system ( 100 pre-program for IFT , 20 program of Russian current 55 pre-program for TENS , & 25 program for MS )

Therapy Mode: IFT ( 2 k ,4 PV, 4PX ,24P,10K 6K , 4 PV , TENS (Cont., Burst, combination, burst medium), MS -(Galvanic, Int. Galvanic, Faradic,& Surged Faradic , Surge faradic long )

Multi vector scan : 2PL Linear 45 ,4 PL Linear 90 Spectrum pattern : Triangular , Trapezoidal ,Square Scanning frq ( 00-50 ,25-50,50-150 ,75 -100 ) Carrier frq : 2 khz & 4 khz, 6 khz ,10 khz For ift Low Frq : 2,10,25,50, 75,80,100,150 for tens Amplitude balance controlled :- To equilise 2 channel current Smps based technology

Ultrasound features Therapy mode :

Continuous & Pulsed Cont. & pulse Output density :-3.5 w/cm2 max Output Frequency:- 1 & 3 MHz 2% Pulse ratio :- 1:2, 1:3, 1:5, 1:7, 1:9, 1:12 & 1:16 Alarms: Audio Alarm at the end of Treatment with auto cut off. 27 Pre Program with protocols

TECHNICAL SPECIFICATIONS

Micro computer controlled based with backlight 162 alpha numeric LCD Display of timer ,therapy mode ,carrier frequency makes, Separate display for both channel out put amplitude, Beat frq ,TENS & MS therapy mode & digital display for timer & output Treatment Duration:- 1 - 60 min in 1 min increments Audio Alarm at the end of therapy with auto cut off Input Power:- 110 -240 V ; 50/60 Hz Weight :- 7 kg aprox Brand : combistim pcd 4 in 1

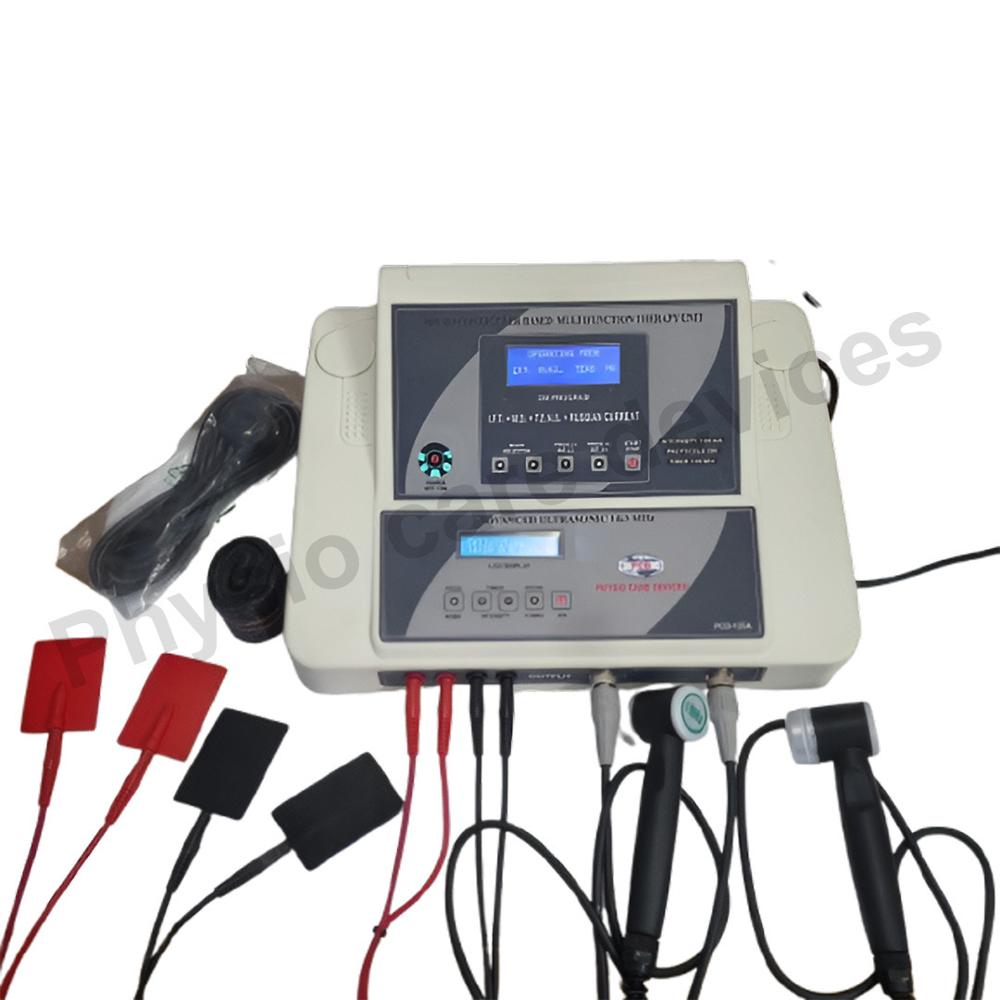

STANDARD ACCESSORIES

Main Unit : 01 No. Ift carbon electrode : 1 pair red & 1pair blue Ift out put lead : 2 red wire & 2 black wire Fixing elastic belts: 02 set. ( each set three different size of belt small, medium ,& large ) Pencil probe :1 no with two pointed ball for different size Ultrasonic applicator : 1 no Mhz & 1 No 3 Mhz Ultrasonic output cable : 1 no Carry bag :01 No Power cable: 01 No

Advanced Microcontroller Technology

Equipped with intelligent microcontroller controls, this therapy unit ensures precision and efficiency in various therapy modes. The advanced circuitry provides stable operation and customized functionality, making it an essential device for professional and personal therapeutic use.


User-Friendly Digital Interface

The therapy unit features a clear LCD digital display for effortless programming and monitoring of therapy sessions. Its intuitive controls enable users to operate the device efficiently, while the rectangular, ergonomic design enhances convenience and usability.


Portability and Versatility

Lightweight and easily portable, this multifunction therapy unit is ideal for at-home treatments or use in clinics. Its robust construction from palctic material ensures durability, while the color-coded design in white and blue adds a sleek touch to medical and wellness settings.
